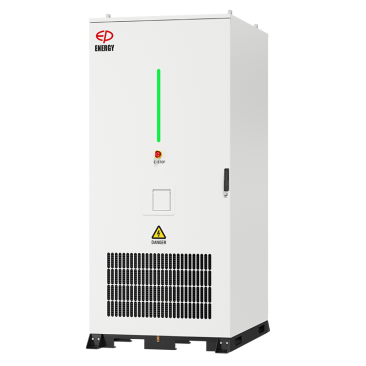

EPES261L — Outdoor Liquid-Cooled Energy Storage System
The EPES261L is an all-in-one outdoor energy storage system combining a 125 kW power conversion system with a 261 kWh LFP battery. Designed for commercial and industrial applications, it supports electricity arbitrage and PV self-consumption.
The system uses 314 Ah battery cells and has a 0.5C charge/discharge rate. Its active liquid cooling and heating system helps manage battery temperature across a wide operating range. The pre-assembled cabinet is designed for outdoor installation and simplified deployment.
With an IP55-rated enclosure and integrated fire protection, the EPES261L provides a compact energy storage solution for sites seeking to manage energy use and make better use of solar generation.
Key Features
- High-capacity storage: 261 kWh nominal energy capacity.
- Powerful output: 125 kW rated AC power, with up to 137.5 kW maximum AC power.
- LFP battery: 314 Ah cells with a 0.5C charge/discharge rate.
- Active thermal management: Liquid cooling and heating system.
- Integrated fire protection: Aerosol system, pack-level immersion and active warning.
- Outdoor-ready enclosure: IP55 protection and C4 anti-corrosion rating.
- Long cycle life: More than 8,000 cycles, with 70% end-of-life capacity at 95% depth of discharge.
Benefits
- Energy cost management: Supports electricity arbitrage by storing energy for use at more valuable times.
- Solar self-consumption: Store surplus PV generation for later use.
- Pre-assembled system: An all-in-one cabinet designed to simplify installation.
- Outdoor deployment: A compact footprint and weather-resistant enclosure support outdoor installation.
- Thermal and fire protection: Integrated systems help manage battery temperature and safety.
Technical Specifications
|
Specification
|
EPES261L
|
|
Nominal energy capacity
|
261 kWh
|
|
Rated AC power
|
125 kW
|
|
Maximum AC power
|
137.5 kW
|
|
Battery chemistry
|
LFP
|
|
Battery cell capacity
|
314 Ah
|
|
Charge/discharge rate
|
0.5C
|
|
Nominal DC voltage
|
832 V
|
|
DC operating voltage range
|
715–936 V
|
|
Nominal grid voltage
|
230/400 V AC
|
|
Grid frequency
|
50/60 Hz
|
|
Depth of discharge
|
0–95%
|
|
Cycle life
|
>8,000 cycles; 70% EOL at 95% DoD
|
|
Cooling and heating
|
Active liquid cooling and heating
|
|
Protection rating
|
IP55
|
|
Anti-corrosion rating
|
C4
|
|
Operating temperature
|
−30°C to 55°C
|
|
Dimensions (W × D × H)
|
1,050 × 1,350 × 2,400 mm
|
|
Weight
|
Approx. 2,750 kg
|
